Answer
Feb 06, 2026 - 07:37 AM

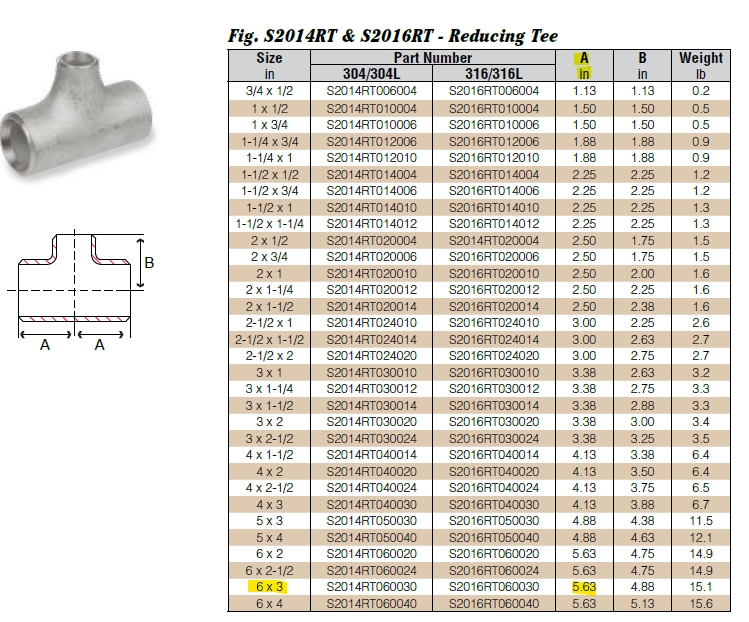

The overall length of the run is going to be Dimension A x 2
5.63" x 2 = 11.26"
![]()
5.63" x 2 = 11.26"
length over all for 6" section 6 in. x 3 in. NPS - Reducing Tee - Schedule 40 Welded - 316/316L Stainless Steel Butt Weld Pipe Fitting - ASTM A403/A960 Reducing Tees
length over all for 6" section shd 40, 6x3 inch T
Status:
Open Feb 06, 2026 - 07:37 AM
Do you have the same question? Follow this Question
1answer
View More Product Details
6 in. x 3 in. NPS - Reducing Tee - Schedule 40 Welded - 316/316L Stainless Steel Butt Weld Pipe Fitting - ASTM A403/A960
Dimensions / Drawings Tees (Reducing) - Butt Weld Pipe Material Schedule: 10S - Light IPS 40S - Standard IPS 80S - Extra Heavy IPS View All Dimensions Material Specifications: Stainless butt weld pipe fittings conform to ASTM A403, ASTM A960, MSS SP-43 Stainless butt weld pipe fitting dimensions con...
